Boss DM-2W Waza Craft Delay
New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center
Now, the Legendary Analog Delay Is Back With a Modern Edge
Ever since being discontinued way back in 1984, the BOSS DM-2 Delay pedal has remained highly sought after by players everywhere for its warm, “bucket brigade” analog delay tone. Now, the DM is back! With the Waza Craft DM-2W, the coveted stomp has been reborn with switchable sound modes and greater versatility for today’s music styles. Using 100-percent analog circuitry, the DM-2W’s Standard mode nails the lush sound and 20-300 ms delay range of the original DM-2. Flipping into Custom mode instantly changes the sound character to a cleaner analog tone with over twice the available delay time.
Waza Craft innovation for a premium analog tone experience
True reproduction of the vintage DM-2 Delay sound
Premium all-analog circuit with BBD (bucket brigade) delay line
Standard mode for authentic DM-2 tone with 20-300 ms delay time
Custom mode provides warm-yet-clear delay sound and maximum 800 ms delay time
Expression pedal input for foot control of delay time
Two output jacks allow separate output of delay and direct sounds
Made in Japan
BOSS five-year warranty
WAZA CRAFT : The Art of Superior Tone
Since the beginning, the engineers at BOSS have been committed to achieving the finest guitar tones using any technology necessary, from old-school analog circuits to high-tech DSP. Continuing this enthusiastic spirit, we are pleased to introduce the new Waza Craft series. In Japan, “Waza” is the term for art and technique, and these special edition pedals proudly carry the Waza symbol to represent the pinnacle of BOSS design and craftsmanship. Being made in Japan, the Waza Craft series brings you exceptional tone and touch response through carefully-selected analog components, refined circuitry, and meticulous attention to detail.
Specifications
Nominal Input Level-20 dBu
Input Impedance1 M ohm
Nominal Output Level -20 dBu
Output Impedance 1 k ohm
Recommended Load Impedance 10 k ohms or greater
Delay Time
Standard Mode: 20 ms to 300 ms
Custom Mode: 40 ms to 800 ms
Controls
Pedal switch
REPEAT RATE knob
INTENSITY knob
ECHO knob
Mode switch
Indicator
CHECK indicator (Serves also as battery check indicator)
Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DIRECT OUT jack: 1/4-inch phone type
RATE jack: 1/4-inch TRS phone type

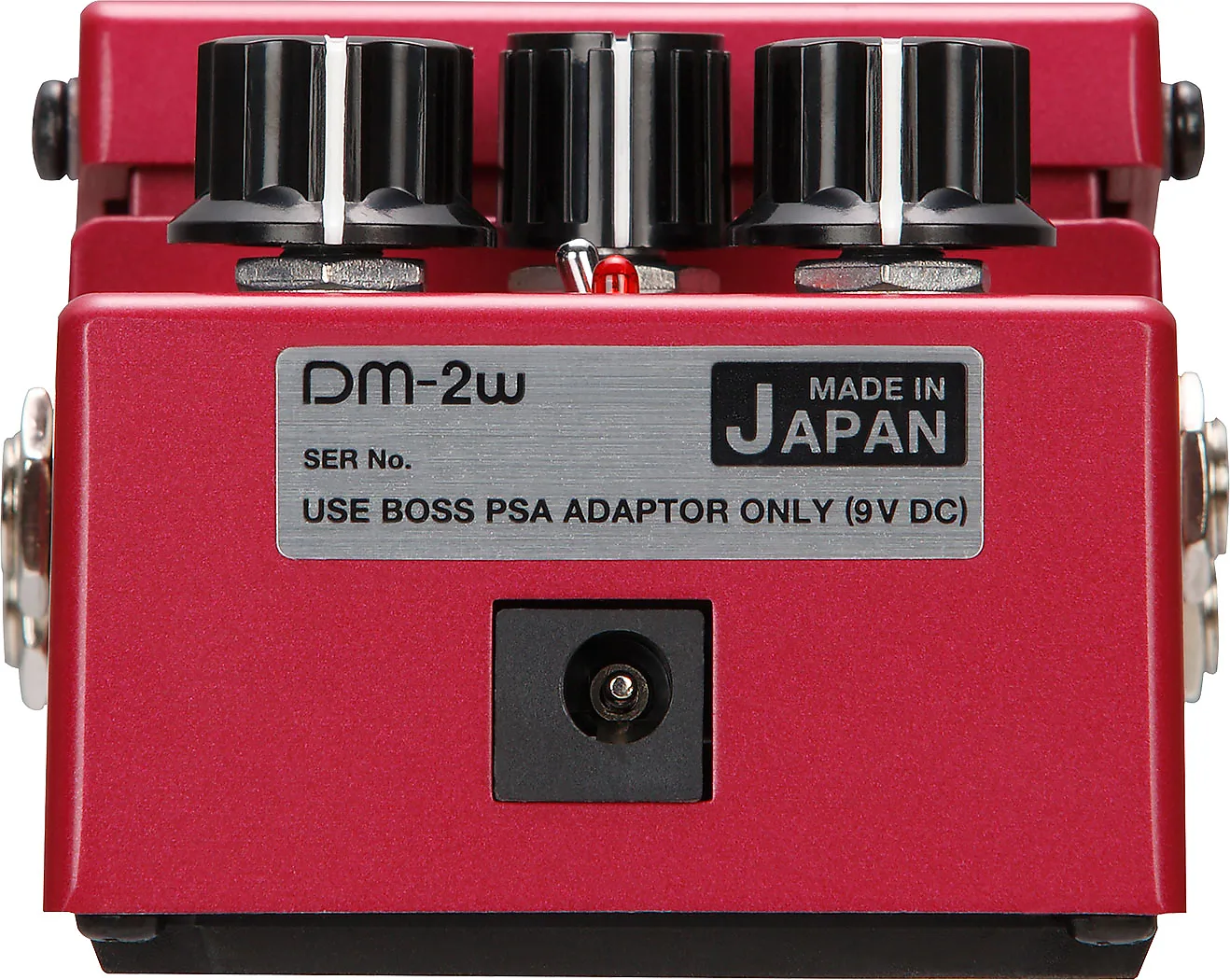

DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61) or Carbon-zinc battery (9 V, 6F22)
AC adaptor (PSA series: sold separately)
Current Draw
35 mA
Expected battery life under continuous use (These figures will vary depending on the actual conditions of use.)
Alkaline: Approx. 15 hours
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression pedal: Roland EV-5
Size and Weight
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight 460g 1lb 1oz
