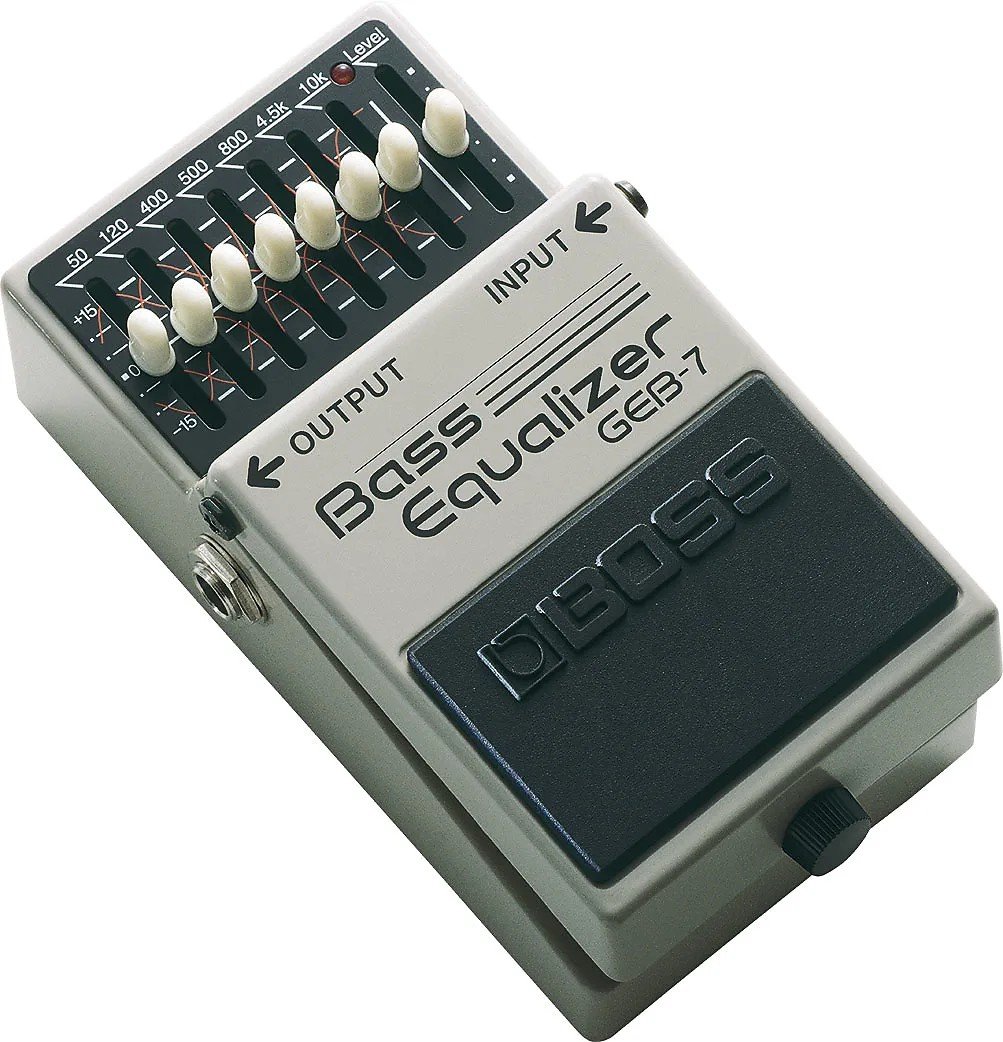

Boss GEB-7 Bass Equalizer

New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center

Precise Tonal Control

The GEB-7 is a seven-band equalizer created specifically for the frequency range of the electric bass. Since the frequency range extends down to 50Hz, the GEB-7 is also great for adjusting depth and bottom end of an upright bass with pickups.

• 50Hz to 10kHz frequency range specifically designed for bass

• Full range response, even for five- and six-string basses

• Can be used as a "boost" or "cut" pedal using the level control knob

• Great for eletric-acoustic bass applications

• AC adaptor or 9V battery operation

• BOSS five-year warranty

Specifications

Nominal Input Level
-20 dBu

Input Impedance
1M ohm

Nominal Output Level
-20 dBu

Output Impedance
1k ohm

Recommended Load Impedance
10 k ohm or greater

Bypass
Buffered bypass

Controls
Level Control knob
Equalizer Control knob
50, 120, 400, 500, 800, 4.5 k, 10 kHz

Pedal switch Indicator
CHECK indicator (Serves also as battery check indicator)

Connectors
INPUT jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
DC IN jack

Power Supply
Carbon-zinc battery (9 V, 6F22)
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)

Current Draw
30 mA

Expected battery life under continuous use
Carbon: Approx. 8.5 hours
Alkaline: Approx. 18.5 hours

*These figures will vary depending on the actual conditions of use.

Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Carbon-zinc battery (9 V, 6F22)

Options (sold separately)
AC adaptor: PSA series

Size and Weight
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 400g 15oz
