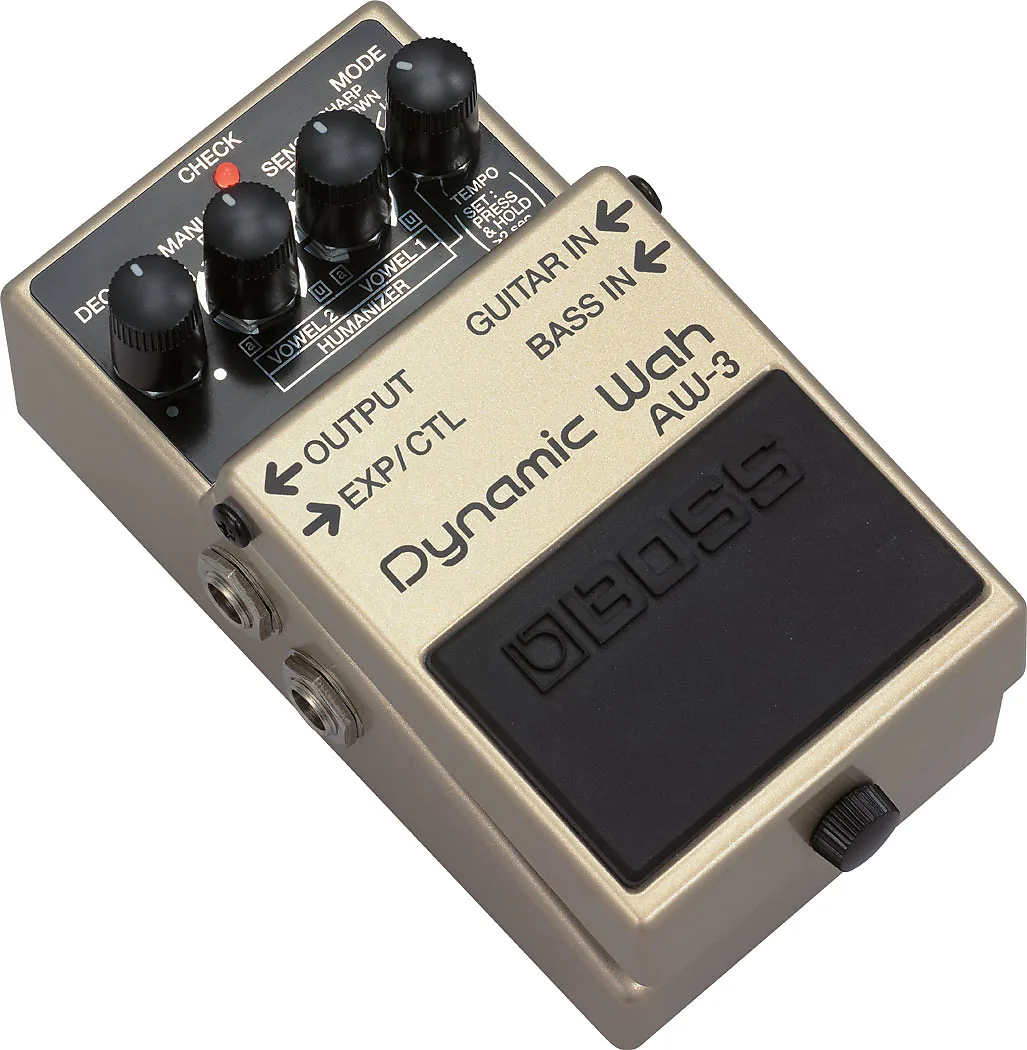

Boss AW-3 Dynamic Wah
New With Warranty From
Dexter Music Center
Authorized Dealer and Service Center
Unbelievable “Talking” Wah Effects!
The BOSS AW-3 Dynamic Wah pedal gives guitarists a wide range of classic auto-wah and dynamic wah effects, plus a new "Humanizer" effect which can simulate human vowel sounds. A Bass input provides a variety of funky wah sounds for bass guitar.
Compact pedal creates a variety of classic "wah" effects
Dynamic wah sounds provide variable effect based on picking strength
"Humanizer" effect creates human voice-type vowel sounds
Dedicated Bass input for processing bass guitar
EXP Pedal mode allows wah control via optional expression pedal
Tempo can be set for pedal control or at fixed rate via Manual mode
BOSS five-year warranty
A “Talking” Pedal
The AW-3 Dynamic Wah is the first compact wah pedal to incorporate human voice-type sounds through a new “Humanizer” Mode. Of course, you can also choose from standard up-and-down wah effects, plus a Tempo Mode and resonant synth-like Sharp Mode.
Endless Possibilities
Choose from both fixed and auto wah settings using the Manual control or pedal for tempo input. By connecting an optional expression pedal, the AW-3 can also be used for Pedal Wah effects. A dedicated Bass input permits direct processing of bass guitars.
Nominal Input Level -20 dBu
Input Impedance 1M ohm
Nominal Output Level -20 dBu
Output Impedance1 k ohm
Recommended Load Impedance 10 k ohms or greater
Bypass Buffered bypass
Controls
MODE knob
SENS knob
MANUAL knob
DECAY knob
Pedal switch
Indicator
CHECK indicator (Used for indication of check battery)
Connectors
GUITAR IN jack: 1/4-inch phone type
BASS IN jack: 1/4-inch phone type
OUTPUT jack: 1/4-inch phone type
EXP/CTL jack: 1/4-inch phone type
DC IN jack
Power Supply
Alkaline battery (9 V, 6LR61)
AC adaptor (PSA series: sold separately)
Current Draw
50 mA
Expected battery life under continuous use
Alkaline: Approx. 8 hours
*These figures will vary depending on the actual conditions of use.
Accessories
Leaflet ("USING THE UNIT SAFELY," "IMPORTANT NOTES," and "Information")
Alkaline battery (9 V, 6LR61)
Options (sold separately)
AC adaptor: PSA series
Expression Pedal: EV-30/FV-500H/FV-500L, Roland EV-5
Footswitch(momentary-type): FS-5U/FS-6/FS-7
Size and Weight
Width 73 mm 2-7/8 inches
Depth 129 mm 5-1/8 inches
Height 59 mm 2-3/8 inches
Weight (including battery) 430g 1lb
